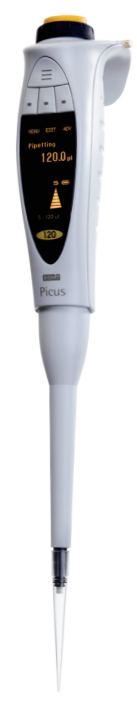

Sartorius Picus: Handle Assembly/Disassembly

Use these instructions to access internal components such as the battery, machinery, and main board on the Sartorius Picus.

Tools Required:

• Philips head screwdriver

Replacement Parts:

1. Picus / Picus NxT Multichannel Electronic Parts (including handle parts)
2. Picus / Picus NxT Single Channel Electronic Parts (including handle parts)

Disassembly

• Make sure power is OFF.
• Unscrew the tip ejector collar and remove.
• Unscrew and remove the tip cone locking cover. Remove the tip cone.
• Turn piston counterclockwise and remove.
• Remove the operation button by pulling up.
• Turn the adjustment wheel counterclockwise to reveal the small Phillips-type screw.
• Remove the screw and ID Window.
• Pull out the upper part of the top cover. Use your thumb to push, if necessary. Remove the top cover.
• Use your thumbs to spread the back cover.
• Remove the machinery.
• Remove the battery and pull the connector out.

Assembly

• Install the battery
• Before installing the lower part, install the upper part of the machinery inside the battery cover.
  • Double check that the machinery was installed correctly.
• Install the upper part of the top cover.
• Use your thumb to push the cover down firmly. Press the lower part of the top cover to install it.
• Re-screw the small Phillips-type screw under the adjustment wheel.
• Install operation button. Bevel on the button should be on the same side as the finger grip, then notches will go into the groves.
