How to Replace the Tip Ejector Mechanism on a Sartorius mLINE Single Channel Pipette

Replace a mLINE Tip Ejector:

Step 1 Disassembly:

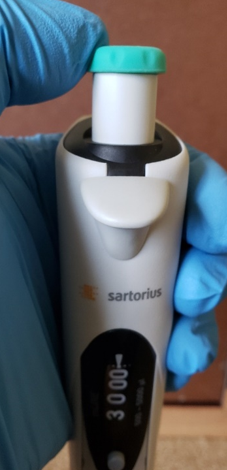

Gently pry and lift off the colored plunger button cap from the mLINE pipette and lay aside for reassembly later on. Shop all colors here.

Step 2:

Gently push up on the tip ejector button with your thumb to loosen/detach the black or blue colored body collar from the pipette. Lift and lay aside for reassembly later.

Step 3:

Continue to gently slide and remove the tip ejector mechanism from the pipette body until it is fully removed.

Step 3A:

With the tip ejector removed, you should have these three parts laid aside:

• New mLINE replacement Tip Ejector (gray or blue colored): SA 726005

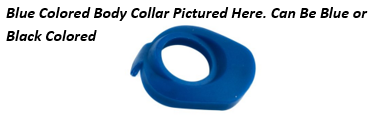

• Body Collar: SA 726002
• Plunger Button Cap: Shop all colors here

Note: The tip ejector collars and tip ejector may come in a blue or gray color. Other than color, they are both the same and interchangeable

Step 4 Reassembly:

Gently line up the tip ejector posts with the body slots. Once aligned, slowly insert and slide the new tip ejector assembly fully into place.

Step 5 Reassembly:

Re-attach the blue or black colored collar assembly. Gently push it down until it seats firmly in place.

Step 6 Reassembly:

Re-install the plunger button onto the pipette plunger rod.

Step 7 Reassembly:

Test out the newly replaced mLINE tip ejector by installing and ejecting pipette tips.
