Pipetman L Ejector Maintenance

Lock/Unlock Assembly Parts

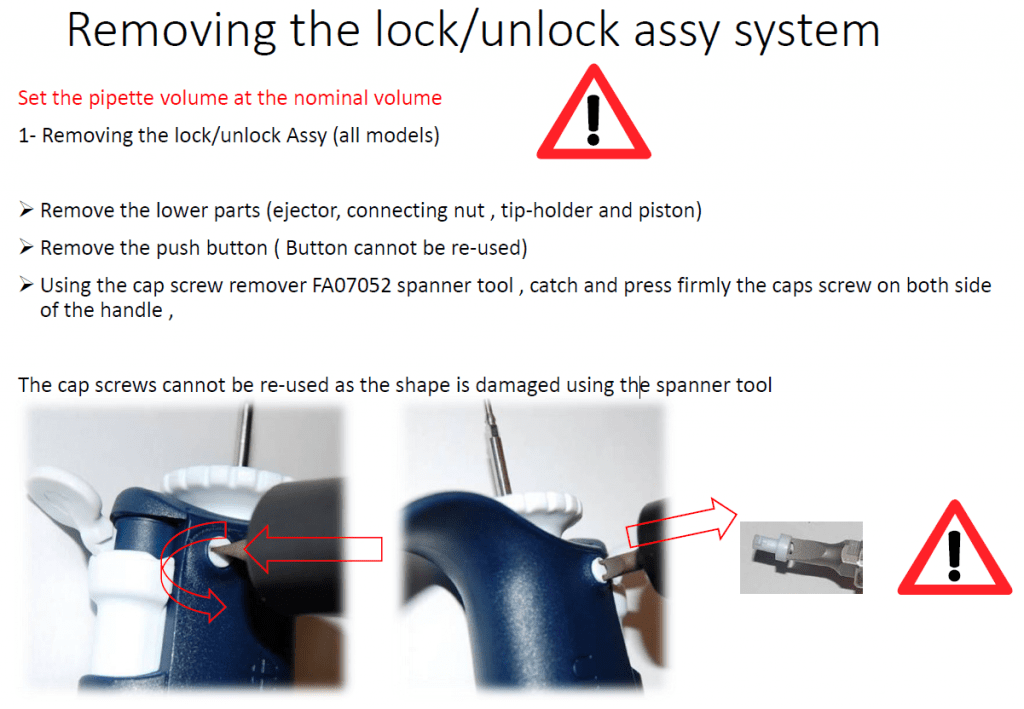

Instructional slide showing how to remove the lock/unlock assembly system from a Pipetman L pipette, with warning symbols and step-by-step directions using a spanner tool for proper pipette maintenance.

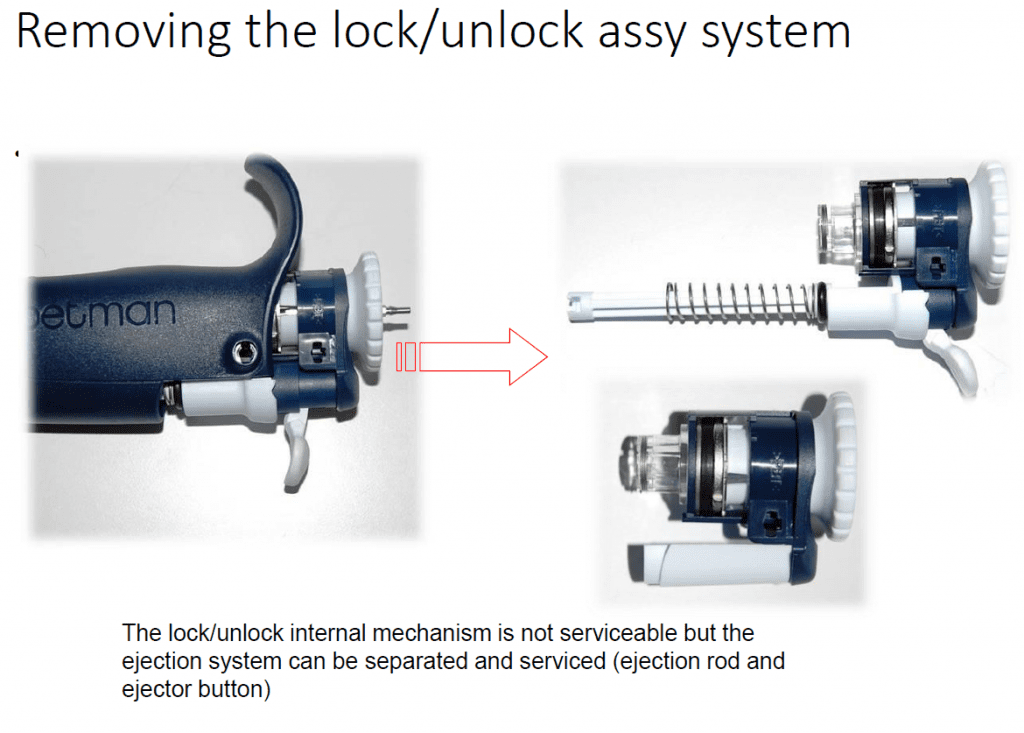

Handheld device with its lock/unlock assembly being disassembled; components like the rod and spring are shown separated, with explanatory text below, illustrating proper Pipetman L pipette maintenance.

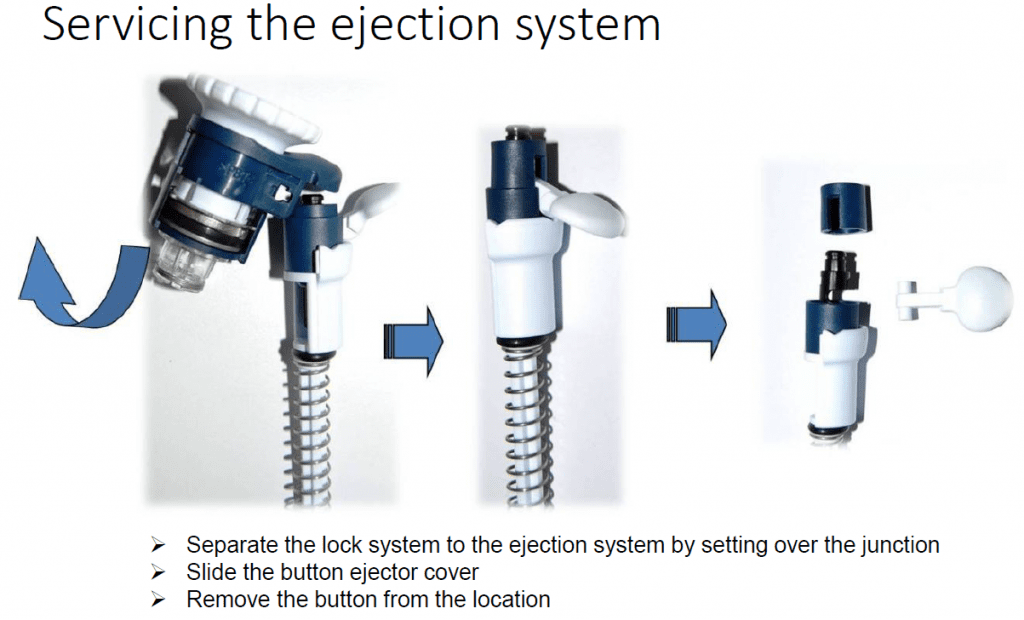

Step-by-step images guide you through Pipetman L ejector maintenance, including separating the lock, sliding off the ejector cover, and removing the button.

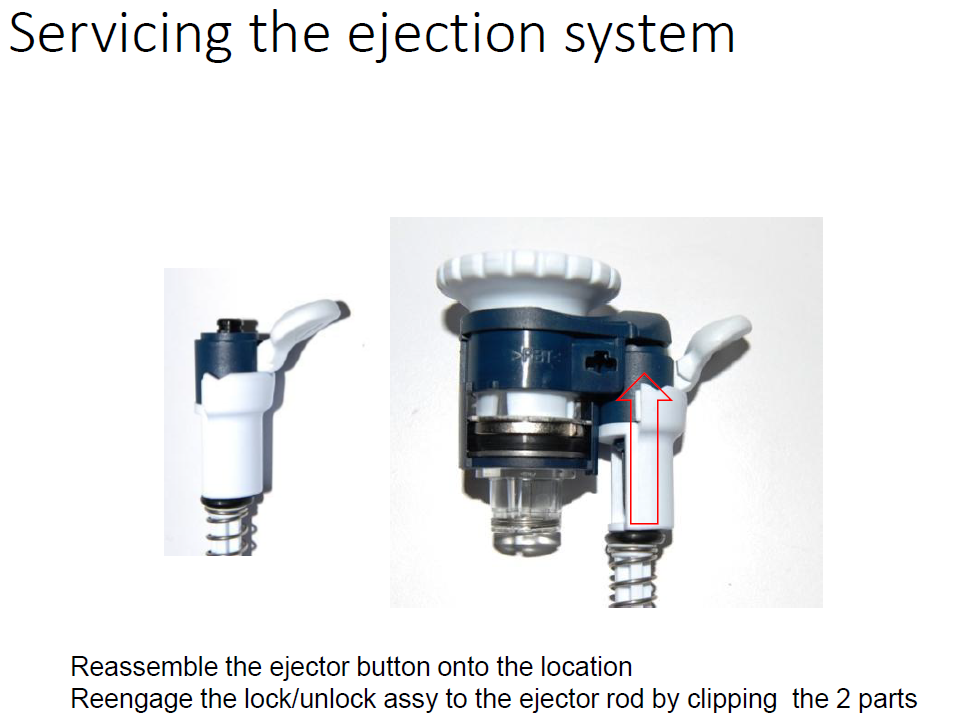

Two views of a Pipetman L ejection system component; an arrow shows how to reattach the lock/unlock assembly for easier ejector maintenance by clipping the two parts together.

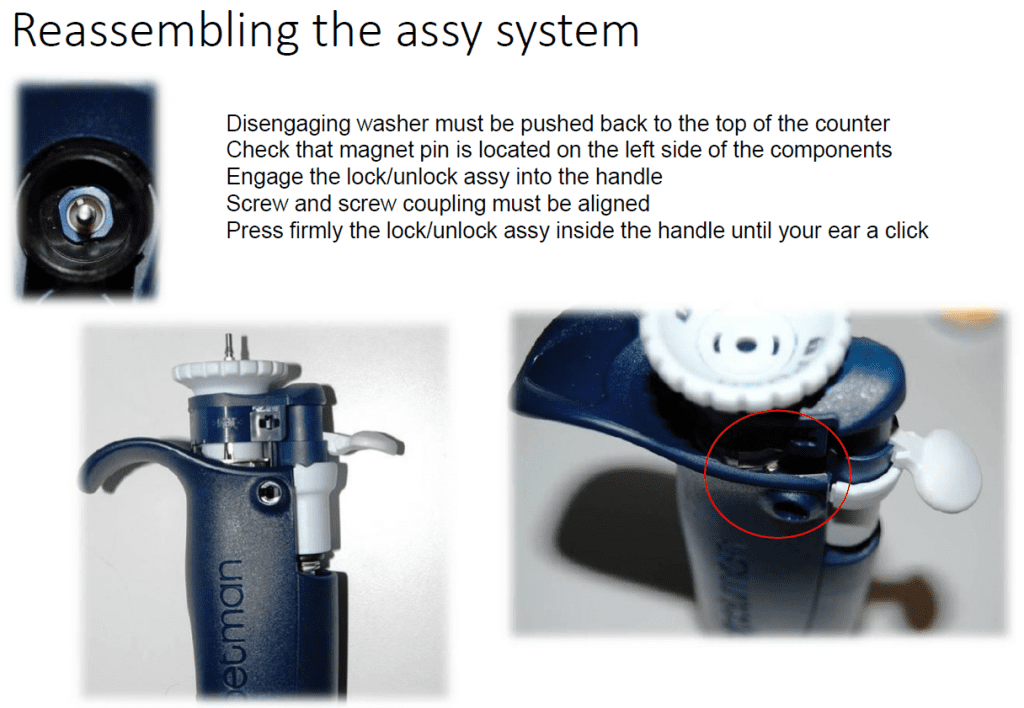

A Pipetman L handle with assembly instructions and a close-up showing the magnet pin location and lock/unlock mechanism, highlighted by a red circle—ideal for Pipetman maintenance and ejector maintenance tasks.

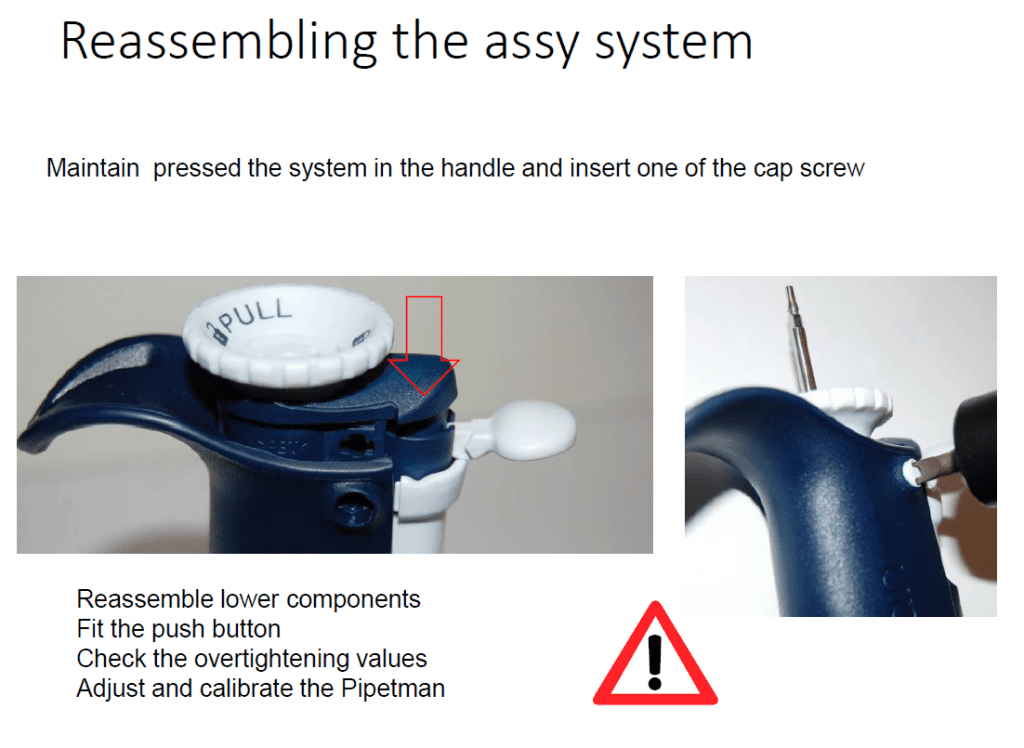

Close-up images show Pipetman L pipette maintenance, highlighting reassembling steps like cap screw insertion, with instructions and a checklist for final adjustments, calibration, and ejector maintenance.
